How to Use NextShapes Hight Resolution 12K Material for Jewelry Design with 3D Printing

     2026.05.06                          NextShapes,HR 12K,3D Printing                ＜1 minute

For many jewelry designers and model makers, LCD 3D printing technology using 405 nm wavelength provides a faster solution for design validation and fitting compared to traditional wax casting methods. Like any manufacturing process, 3D printing materials have their optimal application boundaries. The NextShapes Hight Resolution 12K Red Wax Resin is a high-performance 3D resin specifically developed for detailed models, delivering excellent precision and surface quality in both jewelry and anime prototyping.

The Hight Resolution 12K resin is particularly suitable for 3D printing for jewelry making, including design verification, wearable prototypes, and highly detailed character models. Its key features include high precision, excellent detail reproduction, fine surface texture, and easy cleaning. Compared to standard 3D printing materials, it retains the characteristic red wax tone and tactile feel while significantly reducing the risk of fine feature merging. Additionally, 3D printed parts are less prone to damage during alcohol cleaning.

Minimum Detail Resolution in 3D printing

Fine features such as ring engravings, prong settings, and facial expression lines in character models are critical indicators of performance in 3D printing. If resolution or material flow is insufficient, these details may blur, disappear, or fuse.

The Hight Resolution 12K Red Wax 3D resin can reliably reproduce raised or recessed features as small as 0.1 mm in width and depth. For example, engravings inside a ring band—such as logos or purity marks—remain clearly legible at character heights as small as 0.2 mm. In comparison, standard 3D printing resins typically achieve only 0.3–0.4 mm minimum detail.

Thanks to its low shrinkage and matte surface finish, the edges of 3D printed parts remain crisp without glare or light blooming, making details easier to inspect and approve with clients.

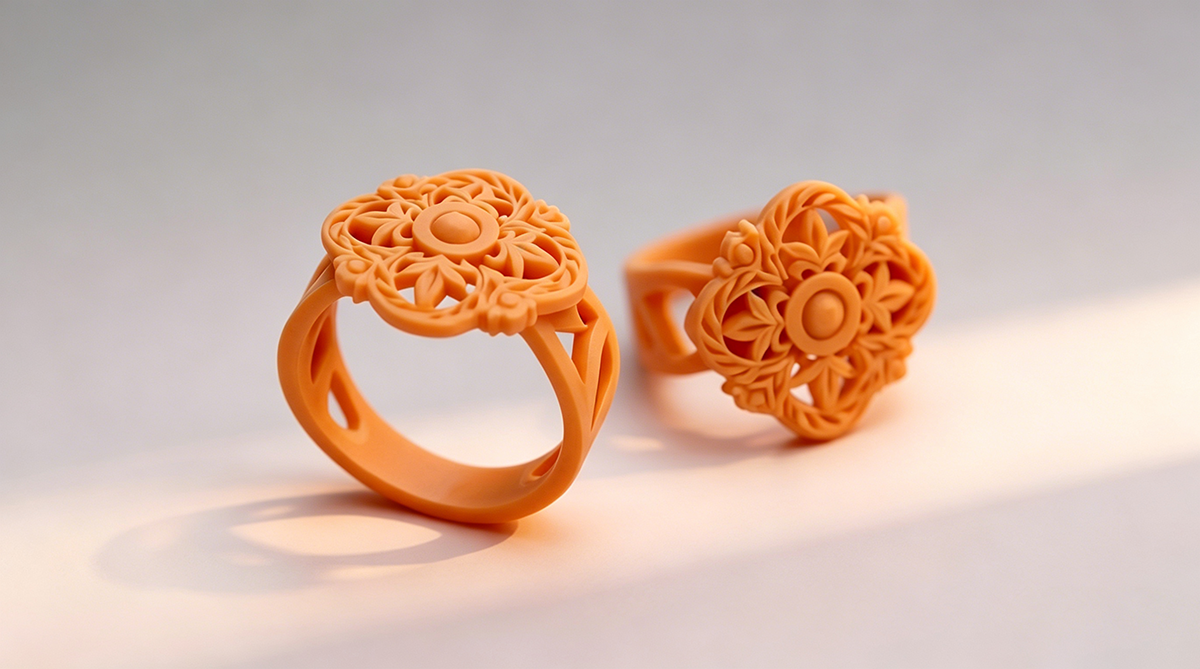

Overhangs and Undercut Structures in 3D Printing for Jewelry Making

In 3D printing for jewelry making, hollow patterns, gemstone seat gaps, and intricate vine-like forms often create unsupported overhangs. Conventional 3D resin materials tend to sag or fuse in these areas, requiring extensive supports and increasing post-processing effort.

The Hight Resolution 12K material offers strong bridging and overhang performance. At a 50-micron layer height, it can produce unsupported horizontal spans up to 3.5 mm without noticeable deformation. For delicate undercuts—such as the inner side of prongs—3D printed geometry remains clean without additional supports.

It is recommended to preview models layer by layer in slicing software when performing 3D printing. For overhangs exceeding this range, light-touch supports can be added to improve success rates. Overall, support usage can be reduced by approximately 40% compared to standard 3D resin materials.

Cleaning and Post-Processing of 3D Printed Models

Jewelry prototypes created through 3D printing often require multiple fittings and iterations. When printing multiple sizes of rings or pendants, cleaning efficiency becomes critical to the workflow. Some high-precision 3D resin materials are difficult to clean, and residual monomers can cause detail loss or white marks after curing.

The Hight Resolution 12K Red Wax 3D resin is optimized for easy cleaning. A 2–3 minute wash in alcohol effectively removes uncured material, leaving 3D printed parts with a uniform matte surface and no stickiness. Even after extended curing, small holes and gaps remain open and unobstructed.

This makes it especially suitable for batch 3D printing for jewelry making. Multiple ring sizes can be printed simultaneously, cleaned, and directly used for fitting without additional polishing or drilling.

Applications of 3D printing with Hight Resolution 12K Resin

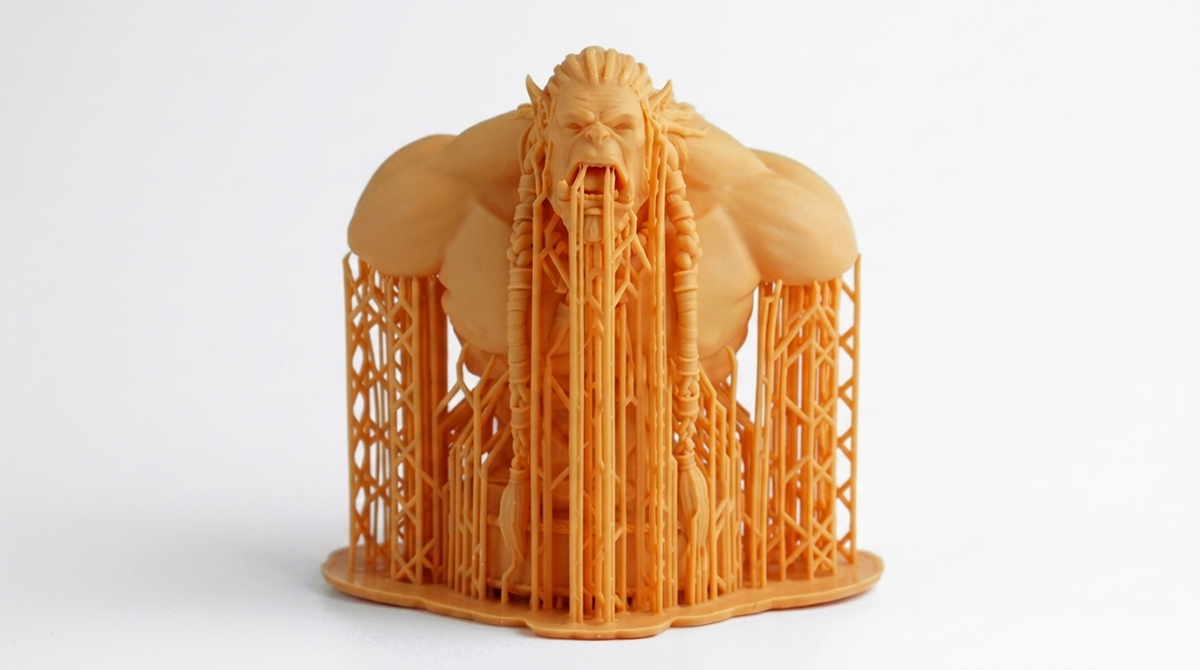

Beyond jewelry, this 3D printing material is widely used in anime figures, collectibles, and miniature prototyping. Fine facial details, textures, hollow structures, and mechanical joints can all be reproduced clearly in 3D printed models.

Its matte finish allows paint to adhere well without primer, reducing glare during inspection of 3D printed surfaces.

In creative industries and miniature modeling, this 3D resin is ideal for architectural components, figurines, tabletop game pieces, and scaled props. Due to its low shrinkage, assembly tolerances in 3D printed parts can be controlled within 0.1–0.2 mm, making it suitable for repeated testing and fitting.
