The Ideal Choice for High-Performance LCD/DLP 3D Printing Materials



     2026.03.04                        NextShapes,Standard Pro,3D Printing              ＜1 minute







NextShapes' Standard Pro Resin is a high-performance standard resin developed for 405 nm LCD/DLP 3D printing systems. This material offers nearly a dozen color options and combines excellent strength, hardness, and toughness with smooth surface finishes. It meets various application needs from concept validation to final display.



When rapid prototyping or small-batch personalized production requires a balance of efficiency and quality, using Standard Pro Resin for 3D printing is a highly cost-effective, high-precision solution. It maintains the material's excellent mechanical properties and surface quality, ensuring the printed output meets user expectations for quality.



NextShapes has conducted comprehensive testing of Standard Pro Resin's overall performance to clearly define how the material performs in standard application scenarios, allowing customers to make more accurate material selections and process planning. For a full workflow and results, please download the white paper.





Standard Pro 3D Resin: A High-Performance Material Born for Rapid 3D Printing





The development of Standard Pro Resin aims to meet the market demand for a standard resin that balances printing speed with mechanical performance. Previously, users often faced a choice: use materials that 3D print quickly but lack performance, or use high-performance materials with lower printing efficiency. The launch of Standard Pro Resin provides a balanced solution to this issue.



With an optimized formulation, this material achieves a good balance among hardness, strength, and toughness while enabling rapid 3D printing. 3D printed parts have smooth surfaces, are easy to clean and post-process, and can be directly used for concept model displays, assembly verification, or subsequent coloring processes.



Typical Applications of Standard Pro Resin:

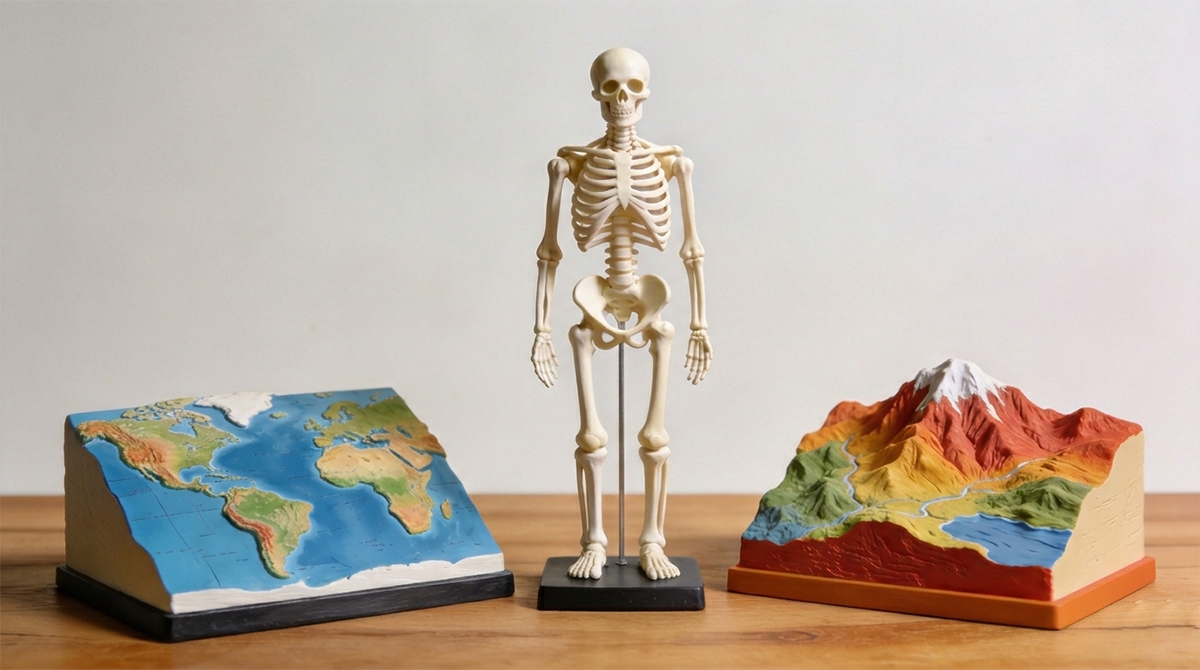

Educational learning tools and 3D printing for education

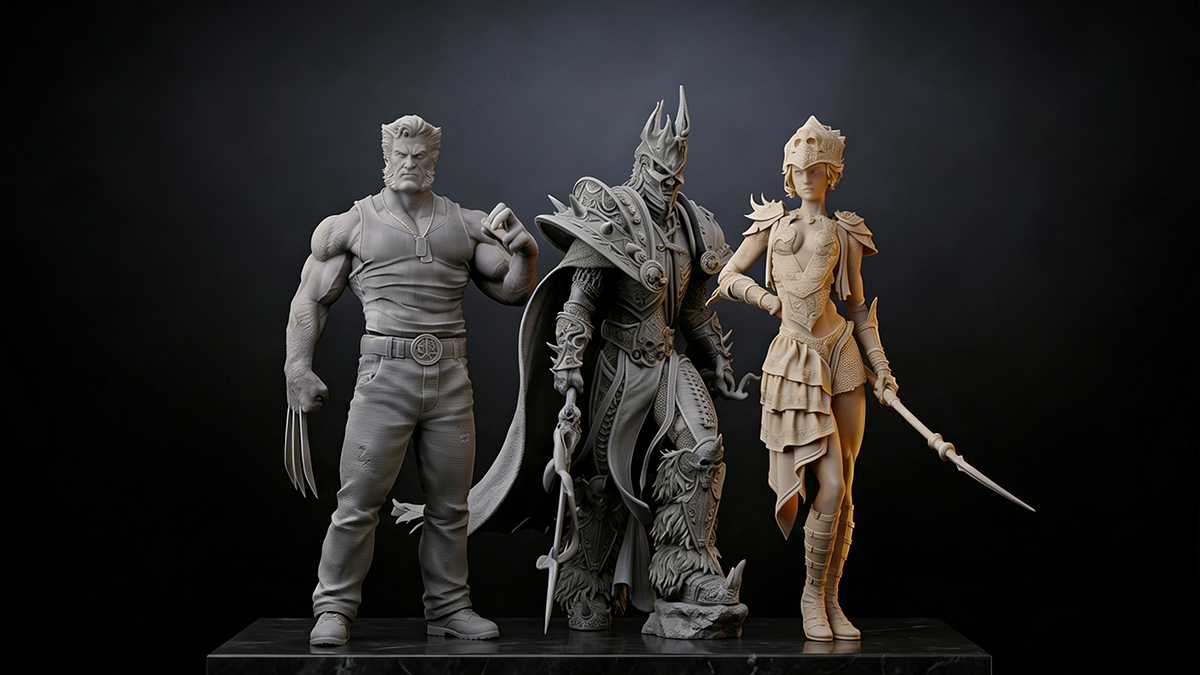

Anime figurines and concept models



Comprehensive Performance Testing and Results Analysis


As a material designed for rapid 3D printing applications, the mechanical performance and printing effect of Standard Pro Resin directly impact user experience. Understanding the material's performance in various use cases helps users leverage its advantages more effectively and avoid print failures caused by improper material choices.



The goal of the material's design is to provide excellent overall mechanical performance while ensuring rapid 3D print speed. In practical applications, the print quality can be influenced by factors such as layer thickness and exposure time. This test was conducted based on recommended printing parameters to provide users with reliable reference data.



Testing Process:


The test was conducted using standard test bars on NextShapes-certified 405 nm LCD printers, with a recommended 50-micron layer thickness. After printing, the test bars underwent standard cleaning and post-curing processes. During testing, the material’s surface finish, dimensional accuracy, and basic mechanical performance were recorded. All test bars were processed according to the product’s technical documentation recommendations. The testing followed standardized procedures to ensure the reliability and reference value of the results.

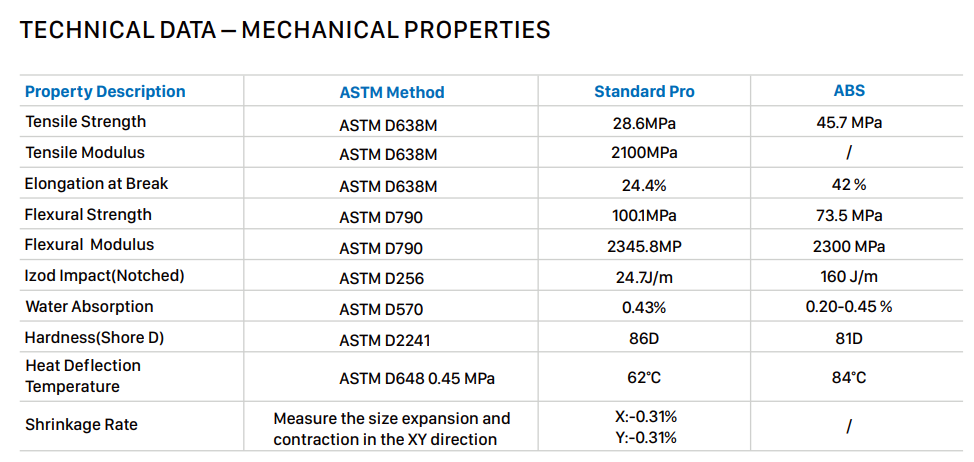

Test Results:


Comprehensive tests of Standard Pro Resin show that, while maintaining rapid 3D printing speed, the material provides excellent surface smoothness and detail expression. 3D printed parts have moderate hardness and strength, with certain toughness to meet regular requirements for concept validation and model displays. The over ten color options offer more possibilities for users in prototype displays, educational presentations, and creative expression.



For scenarios that require quick physical models for design verification, concept presentations, or educational use, Standard Pro Resin is a balanced choice in terms of speed, performance, and cost. Especially in applications such as art design and anime figurines, where surface effects are important, its excellent print quality and easy cleaning features can significantly improve work efficiency.





To discuss how Standard Pro Resin can be applied to your own 3D print projects, please contact our expert team.
